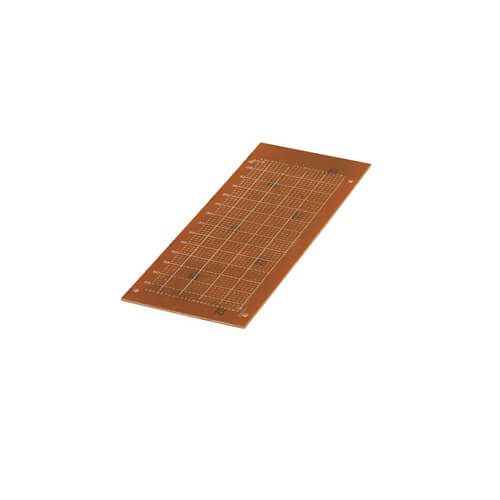

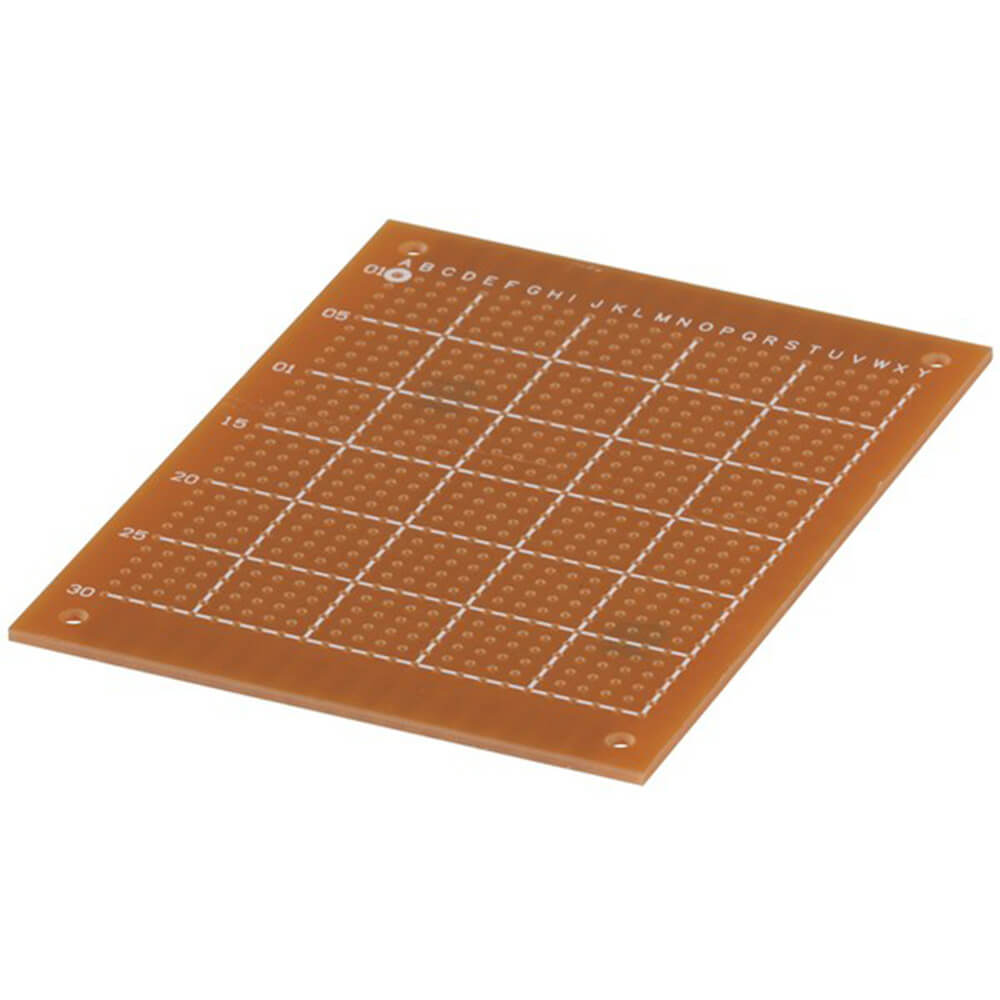

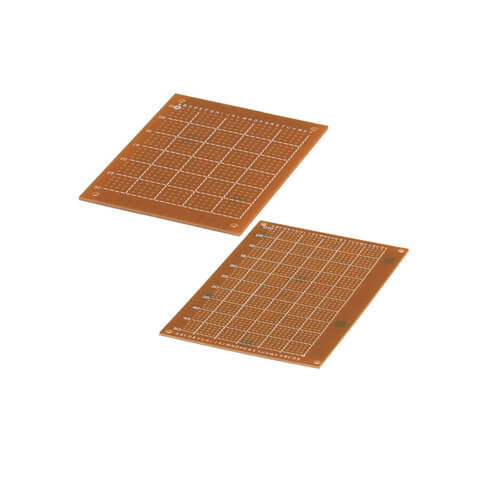

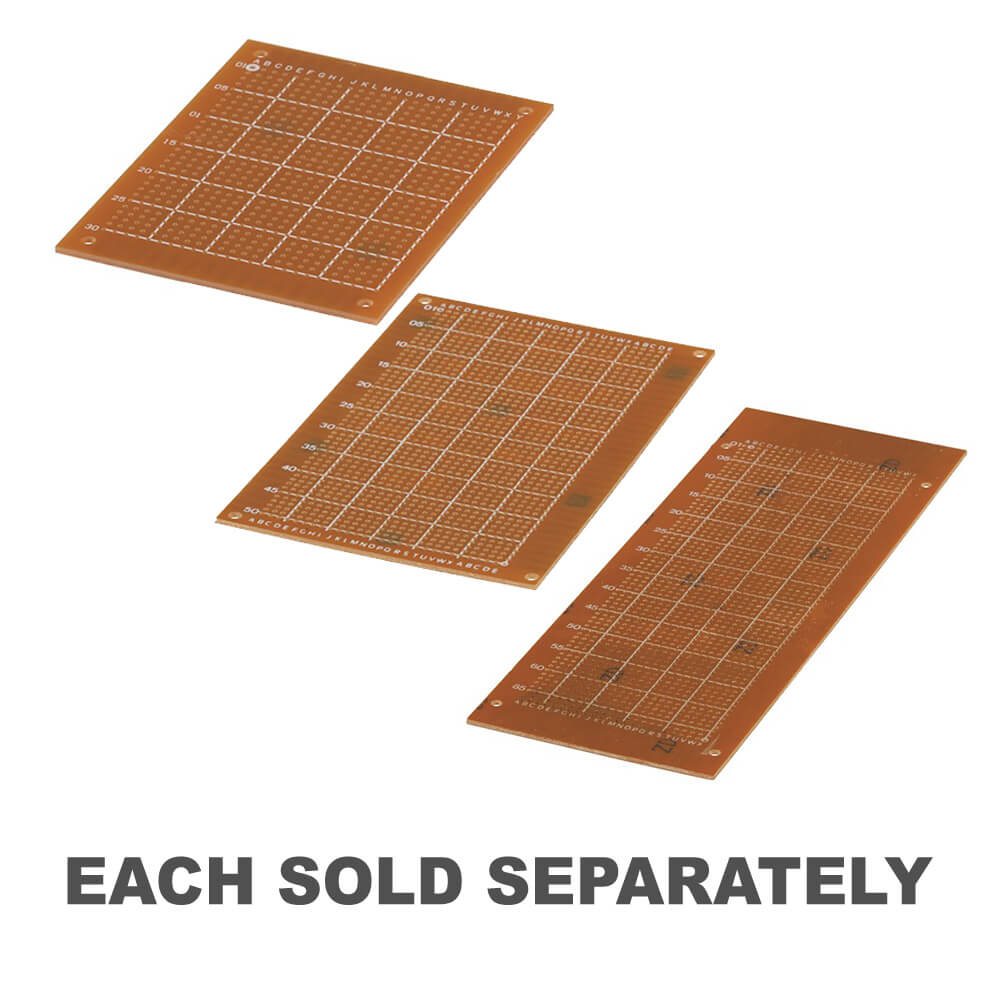

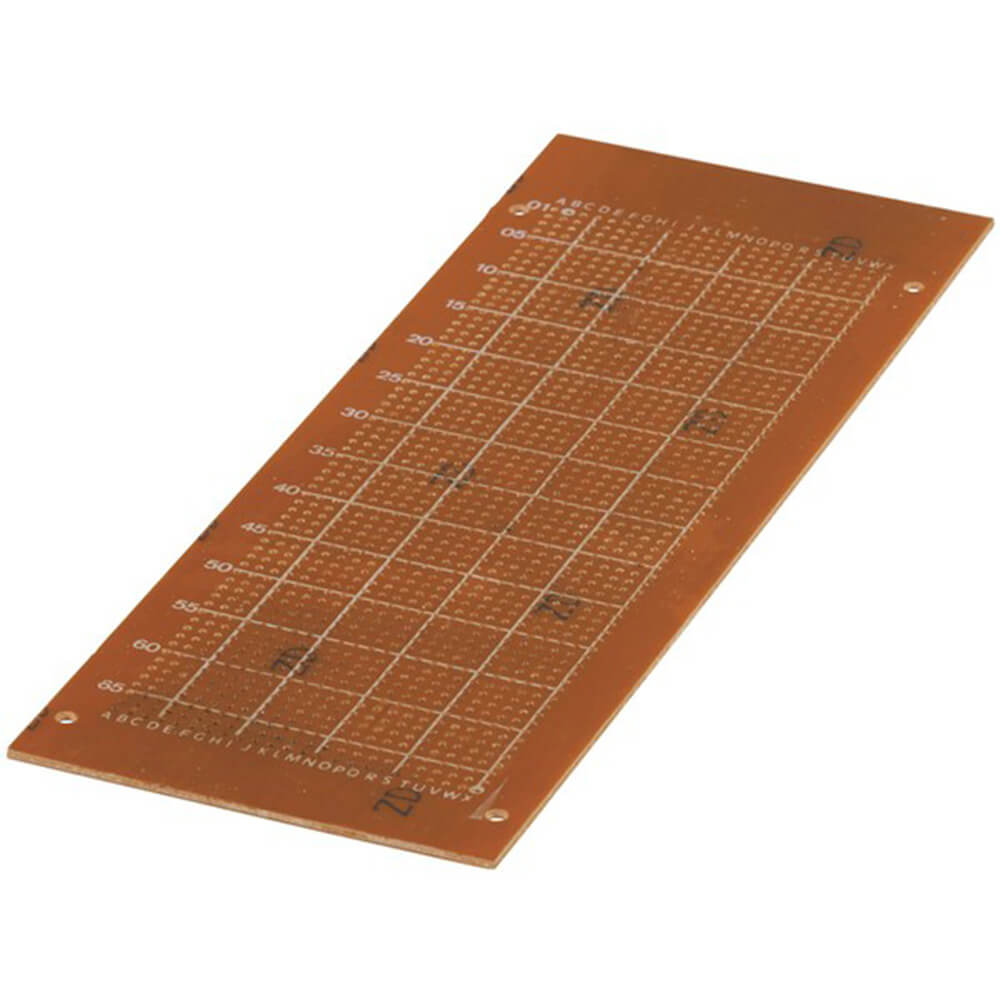

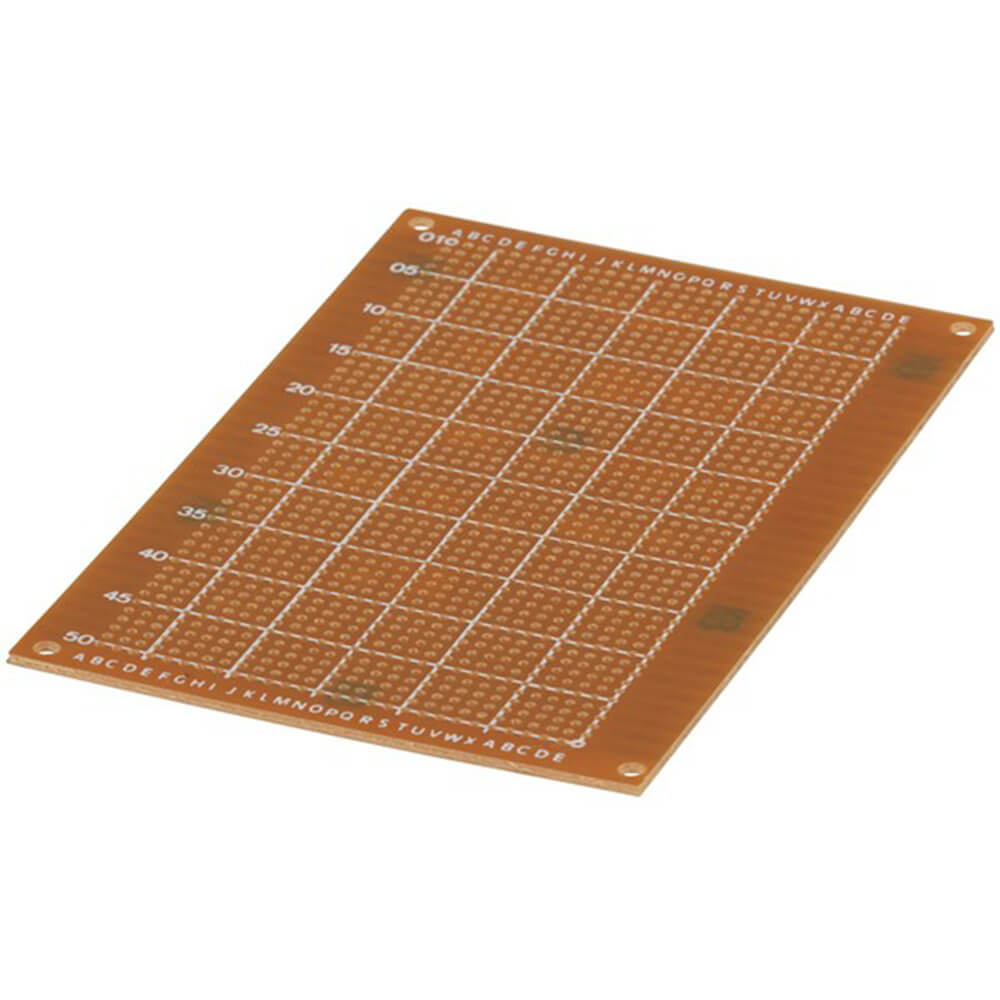

Universal Pre-Punched Experimenters Board

The low cost way to build prototypes. Each donut is separated from its neighbours by about a 0.5mm gap. This effectively isolates each pad but also makes it easy to bridge solder across to make interconnections. Each board also has `fingers' on opposite ends with a 3.6mm edge pitch. These can be used to connect to and from the board or to a card edge connector. Finally the non- solder side of the board has an alpha- numeric grid printed on it to assist in component identification board layout.

Product Specifications

• Length : 78mm
• Width : 210mm
• Packaged Volume : 0.03l
• Packaged Weight : 0.03kg
• Packaged Length : 21cm
• Packaged Width : 7.8cm
• Packaged Height : 0.2cm
• Board type : Doughnut
• PCB hole spacing : 2.54mm
• PCB hole number : 1608pc

• Length : 21 cm
• Width : 7.8 cm
• Height : 0.2 cm
