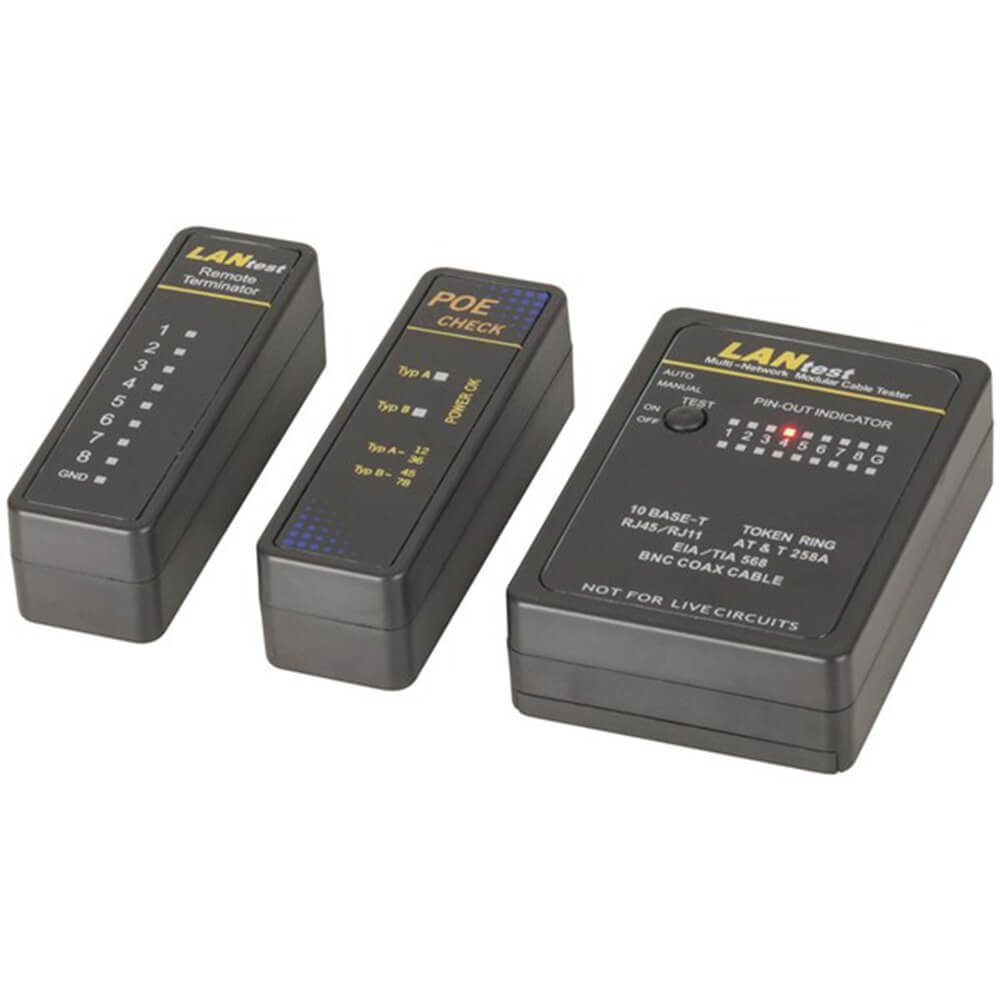

Mini Network Cable Tester with POE Finder

Tests UTP/STP/Coaxial/Modular network cables by manually or automatically detecting missing or disordered wiring, and open or short circuits. It can quickly read the correct pin configuration of 10Base-T cable, 10Base-2 cable, RJ45/RJ11 modular cables, 258A, TIA-568A/568B and Token Ring cable etc. by comparing one transmitting end to the corresponding receiving end.

Supplied in a plastic case and with a PoE (Power-over-Ethernet) Finder that indicates if the network port or cable has power.

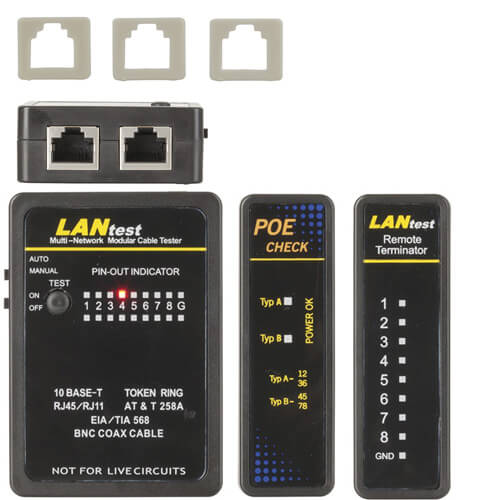

Package Contents:

• 1 x Main Tester Unit with Terminator
• 1 x PoE Finder
• 2 x BNC Adaptor Cables
• 1 x BNC Male/Male Adaptor
• 3 x RJ45 to RJ11 Adaptors

Features:

• Remote terminator: 80(L) x 25(W) x 23(D)mm

Product Specifications

• Length : 80.0mm
• Width : 55.0mm
• Depth : 22.0mm
• Battery used for : Main Product
• Size / Shape : 9V
• Battery quantity : 1.0pc
• Batteries included : false
• Batteries can be replaced by user : true
• Dimensions details : PoE finder
• Length : 80.0mm
• Width : 25.0mm
• Depth : 23.0mm

• Length : 19 cm
• Width : 12 cm
• Height : 4.5 cm
