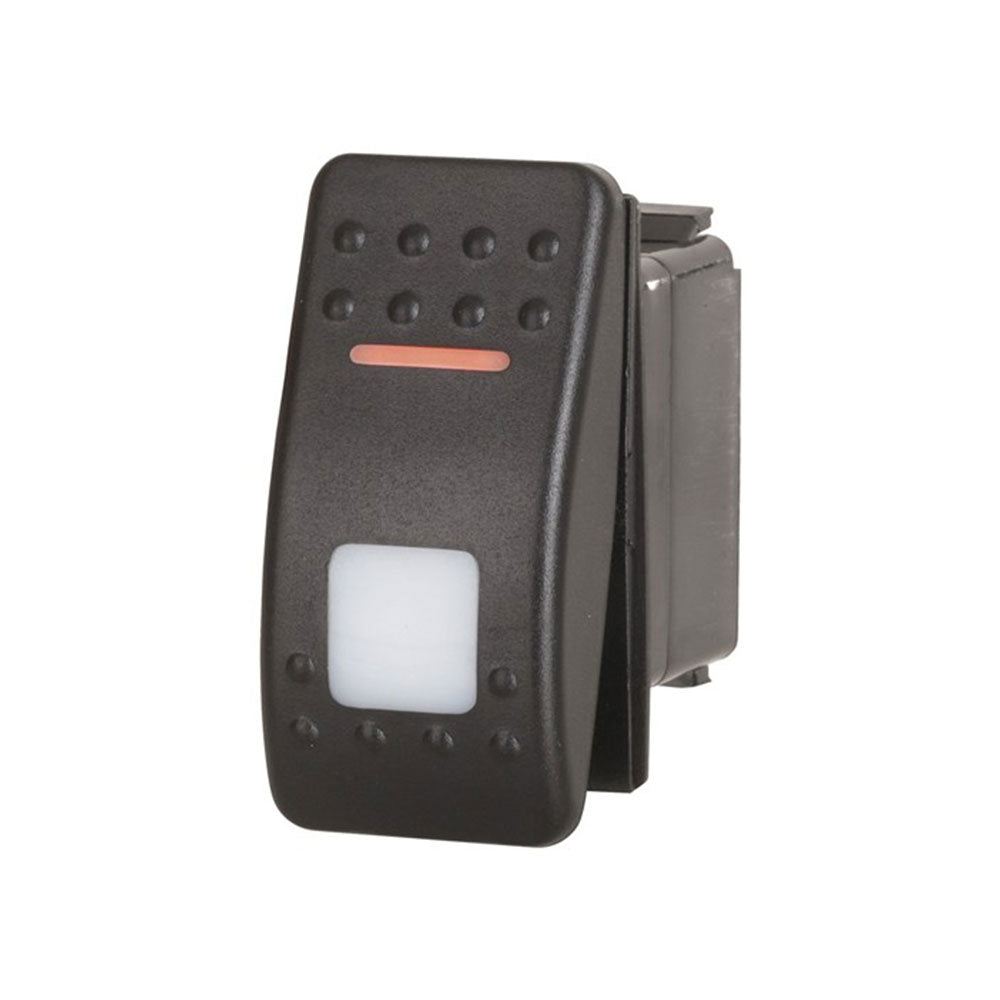

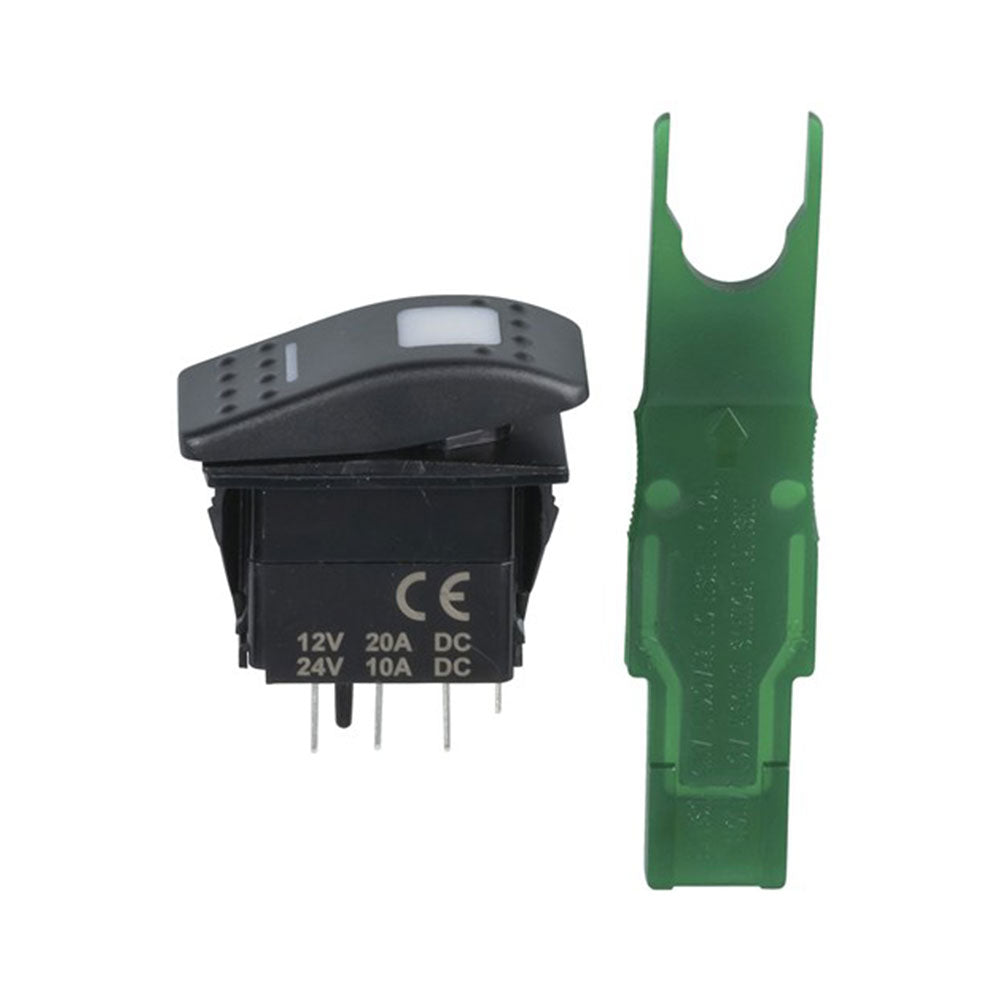

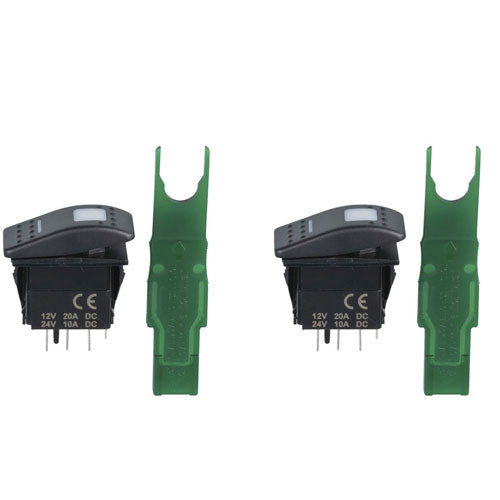

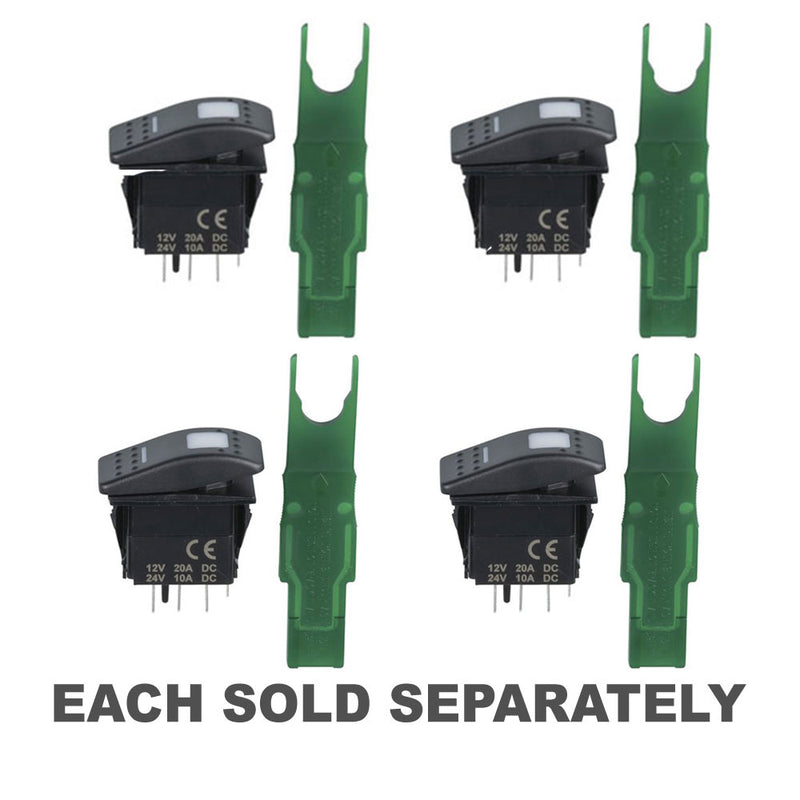

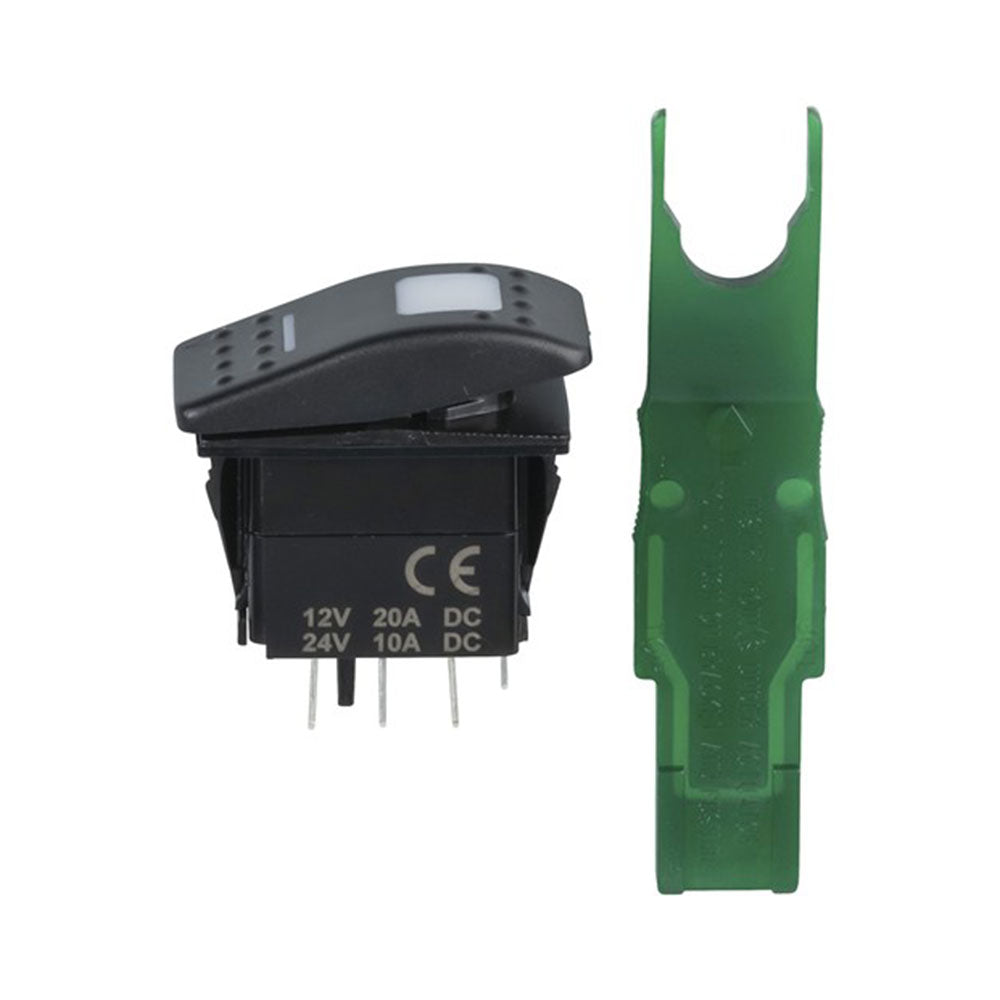

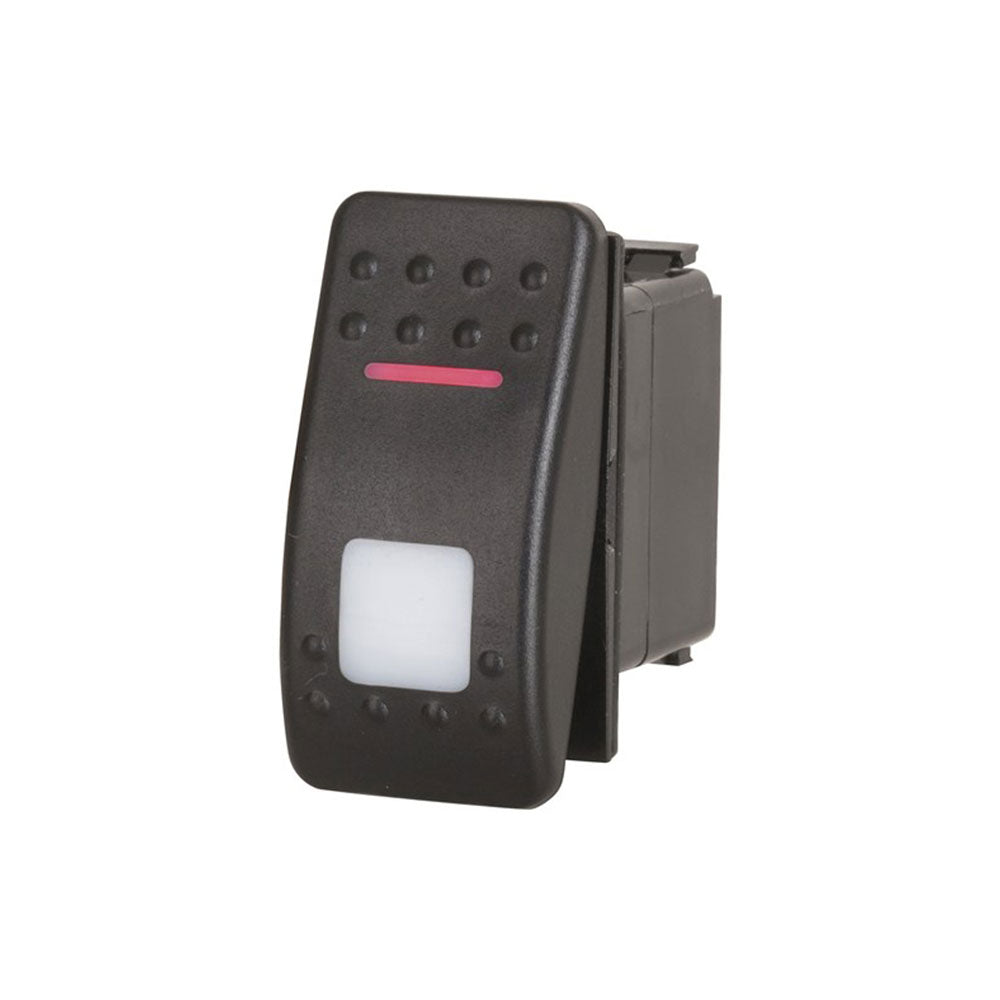

SPDT Dual Rocker Switch with Labels and Cover

These are the superb looking rocker switches that you have seen in the cockpits of the 70-100ft luxury motor cruisers recently. They would look great in your 4WD, RV, Caravan or any other application as well. The base switch supplied (rated at 12V 20A, 24V 10A) comes with a double-LED illumination (low in OFF, high in the ON position), a standard rocker cover and a standard range of decals to customise the switch to your application. Typical decals are symbols for: windscreen wipers, horn, heater, etc; there are dozens of these decals included.

Also available are a set of special laser-etched covers with the following graphic symbols to really create a professional finish. You need to buy the basic switch (in blue, white or red illumination) and then the custom cover (if required

Product Specifications

• Mounting Method : PanelFront of Panel
• Square Mount Hole Width : 21.2mm
• Square Mount Hole Height : 37.2mm
• Attachment / Securing Method : Snap-in
• DC Voltage : 12V
• DC current rating : 20A
• Switch Type : Rocker
• Poles / Contacts : 1 pole
• Throws / Positions : 2pos
• Switch Function : Locking On/Off
• Cycle Life : 100000 cycles
• Mechanism Material : Plastic
• Switch Connection : Spade Terminals
• Pole Throw Type : SPDT
• Illumination Colour : White
• Nominal Voltage : 12V
• Connection : Spade Terminals
• Type : 5mm Standard LED
• Illumination Position : Top

• Length : 18 cm
• Width : 8.1 cm
• Height : 2.9 cm
