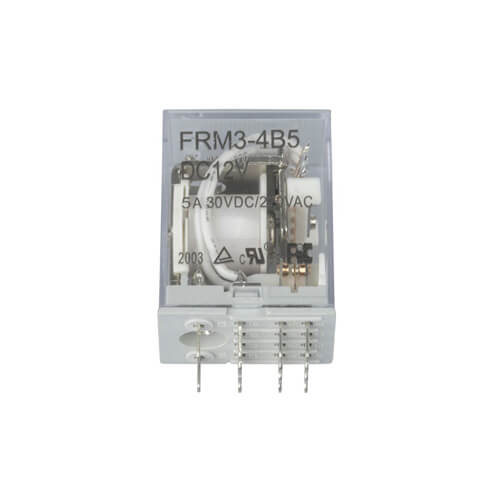

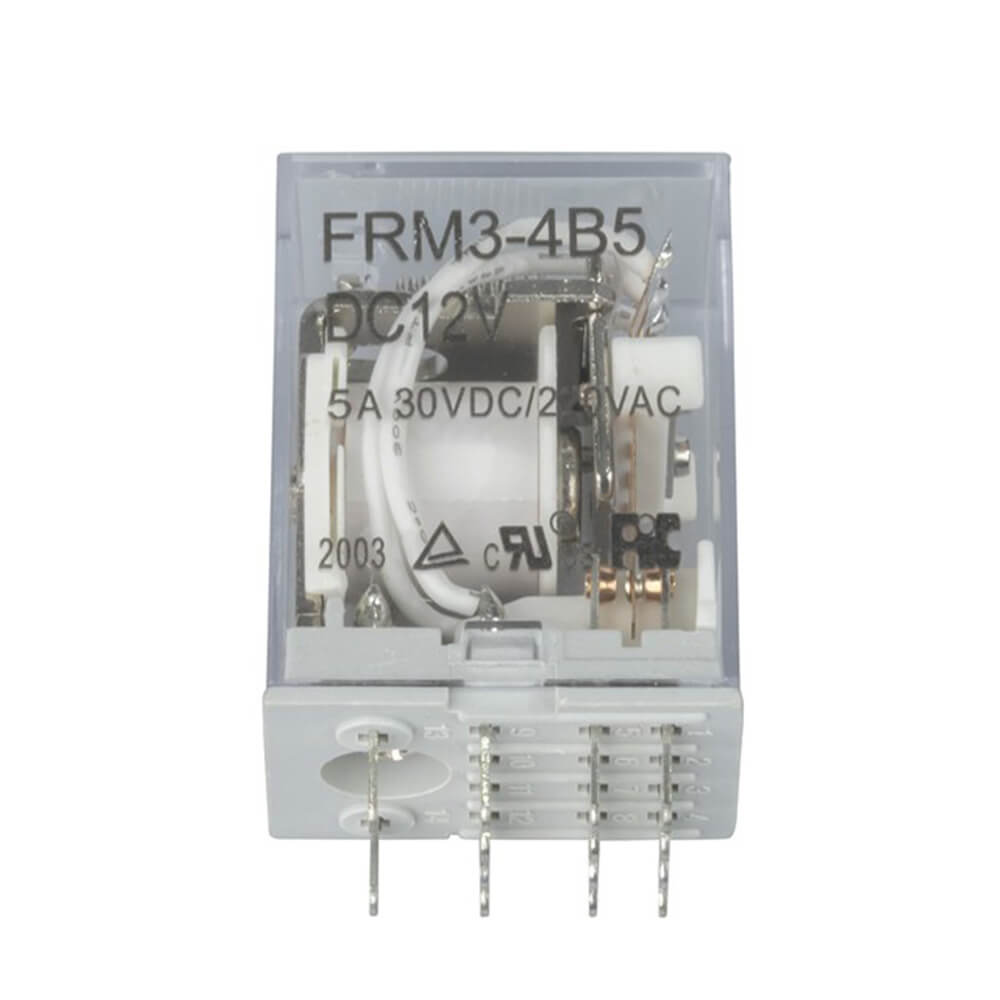

Relay Suitable for Switching Loads Up

Versatile 4PDT relay suitable for switching loads up to 5A. Designed to suit the SY-4004 DIN rail mounting cradle. Can also be installed with direct connection using mini spade lugs.

Product Specifications

• Length : 28mm
• Width : 22mm
• Height : 35.5mm
• DC Voltage : 12V
• DC Current Draw : 67mA
• Mounting Method : Cradle/Socket Mount
• Packaged Volume : 0.02l
• Packaged Weight : 0.04kg
• Packaged Length : 2.6cm
• Packaged Width : 2.1cm
• Packaged Height : 4.1cm
• Device Type : Cradle Mounting Relay
• Input : DC
• Contact format : 4PDT
• Nominal Voltage : 12V
• Coil Resistance : 180Ω
• Coil Current : 67mA
• AC Contact Voltage : 240V
• AC Switching Current (Closing) : 5A
• DC Contact Voltage : 30V
• DC Switching Current (Opening) : 5A

• Length : 2.6 cm
• Width : 2.1 cm
• Height : 4.1 cm
